Nvidia 3D Settings

Nvidia 3D Settings

All simulator PCs should have the same Nvidia 3D Settings. To change the settings, follow the steps below:

  1. Right click anywhere on the desktop and then choose the NVIDIA Control Panel option. You may need to select "Show more options before the NVIDIA Control Panel option becomes visible.

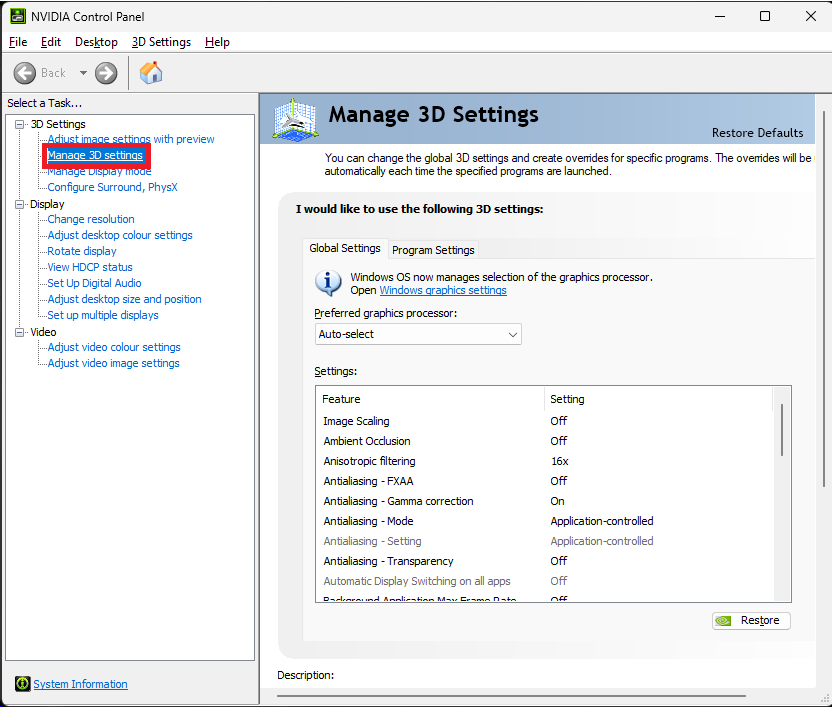

  1. Click on Manage 3D setting in the left pane of the window that opens up.

  1. Next, ensure the following settings are set
    Feature
    Setting
    Anisotropic filtering
    16x
    Antialiasing Mode
    Override any application
    Antialiasing FXAA
    Off
    Antialiasing Setting
    8x
    Vertical sync
    Off
  1. Click Apply and then close the NVIDIA Control Panel
  2. Restart the PC
